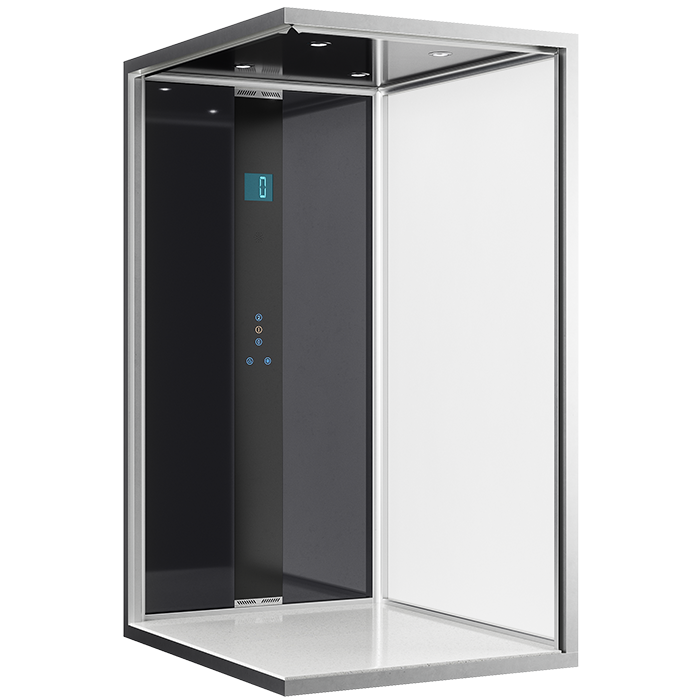

The Eltec HLB is the most popular home lift in the range. The unique electric belt drive system results in one of most environmentally friendly lifts on the market.
Completely customisable
Small to extra large cabin sizes
Exclusive auto/motorised door options
An elegant design
The sleek profile of the Eltec HLB sets it apart and allows it to act as a stunning statement piece or a seamless addition to any interior space. The Eltec HLB strikes the perfect balance between style and functionality.
| Regulations Referenced | European |
| Drive system | VVVF all-electric traction system with counterweights |
| Country of Origin | Manufactured in Italy |
| Capacity | 200–400 kg (wheelchair capacity) |
| Maximum Travel | 20 m |
| Number of stops | 10 |
| Maximum Speed | 0,15 m/sec |
| Pit Depth | 180 mm |
| Headroom* | 2550 mm |
| Motor Room | Motor and controller housed within shaft |
| Power | Single Phase / 230 V 10 A |
Customise your elevator
The Eltec HLB has an expansive range of premium finishes, allowing every Eltec HLB to be truly unique.
A0028 Neolith Just White (Silk) [B]
A0026 Neolith Blanco Carrara (Silk) [B]
A0029 Neolith Zaha Stone (Silk) [B]
A0027 Neolith Nero (Satin) [B]
A0031 Neolith Estatuario (Polished) [P]
A0032 Neolith Calacatta Luxe (Polished) [P]
A0030 Neolith Colorado Dunes (Silk) [P]
A0033 Neolith Layla (Polished) [P]
Abu Dhabi White [PR]
Alexandra [PR]
Calacatta Royale [PR]
Mont Blanc [PR]
[B] = Base Option
[P] = Premium
[PR] = Pricing required
405 Bianco Porcellana Fin. Sei [B]
871 Grigio Scuro Fin. Sei [B]
1845 Sherwood Fin. Sei [B]
421 Nero Fin. Luc2 [B]
1451 Urban Style Fin. Climb [B]
1955 Montale Noli Fin. Root [B]
1961 Aurora Norvegia Fin. Root [B]
1382 Transversal Tobacco Fin. Cross [B]
657 Rovere America Fin. Holz [B]
1959 Fenice Amon Fin. Root [B]
386 Rovere Nazionale Fin. Aquarama [B]
370 Olmo Fine Fin. Root [B]
387 Douglas Fin. Microline [B]
C0066 873 Metalli Fin. Satinato [B]
C0067 874 Metalli Fin. Satinato [B]
1927 Mercurio Fin. Papier [B]
1920 Saturno Fin. Satin [B]
1921 Venere Fin. Satin [B]
1930 Marte Fin. Climb [B]
571 Black Carbon Fin. Papier [B]
Fenix 0029 Bianco Malè [P]
Fenix 0752 Grigio Antrim [P]
Fenix 0718 Grigio Londra [P]
Fenix 0720 Nego Ingo [P]
Fenix 0754 Blu Fes [P]
Fenix 0750 Verde Comodoro [P]
C0013 Stainless Steel SB
C0015 Stainless Steel 2WL Lucido
C0016 Stainless Steel Lino Lucido
C0014 Stainless Steel Lucido 7
[B] = Base Option
[P] = Premium
Eltec h1100
Full Height
Horizontal
Venice Touch
Handrail d25
Handrail d32
Vega Venus
Vega Giunone
Venice Touch
Mirror 700 x 900 mm
Mirror 500 x 1600 mm
C0002 Mirror
C0003 Burnished Mirror
Tricolor Blue
IRIS 7 TFT
2 spotlights
4 spotlights
6 spotlights
Checked
Diamond
Elettra
Elsa
Reverse
Metallic Sliding
Metallic Swing
Full Glass
Big Vision
Wings
B-Wings
Handset
Intercom
Key Vega
I Button
